XCAT-CAN

XCAT-CAN

XCAT-CAN is designed for convenience of field engineers by combining cable and antenna analyzers together. Light weight and handy design makes it easy for field engineers to carry it wherever it is needed. State-of-the art measurement technology enables fast and highly accurate measurement.

Features

ㆍWide frequency range (650MHz ~ 3.8GHz)
ㆍVery light(510g) and compact design
ㆍAndroid application to control and monitor the test
ㆍImmediate diagnosis and troubleshooting
ㆍSimple upgrade by S/W download
ㆍRechargeable battery operated
ㆍUSB interface for Wi-Fi dongle and host communication

Functions

ㆍVSWR/Return Loss
ㅤㅤ: 650MHz ~ 3.8GHz
ㅤㅤ: 1.01 ~ 65 (0.01)
ㆍDTF (Distance to Fault)
ㅤㅤ: 50dB
ㅤㅤ: Measure up to 500m
ㆍCWG (Continuous Wave Generator)
ㅤㅤ: 650MHz ~ 3.8GHz
ㅤㅤ: 0 ~ -60dB

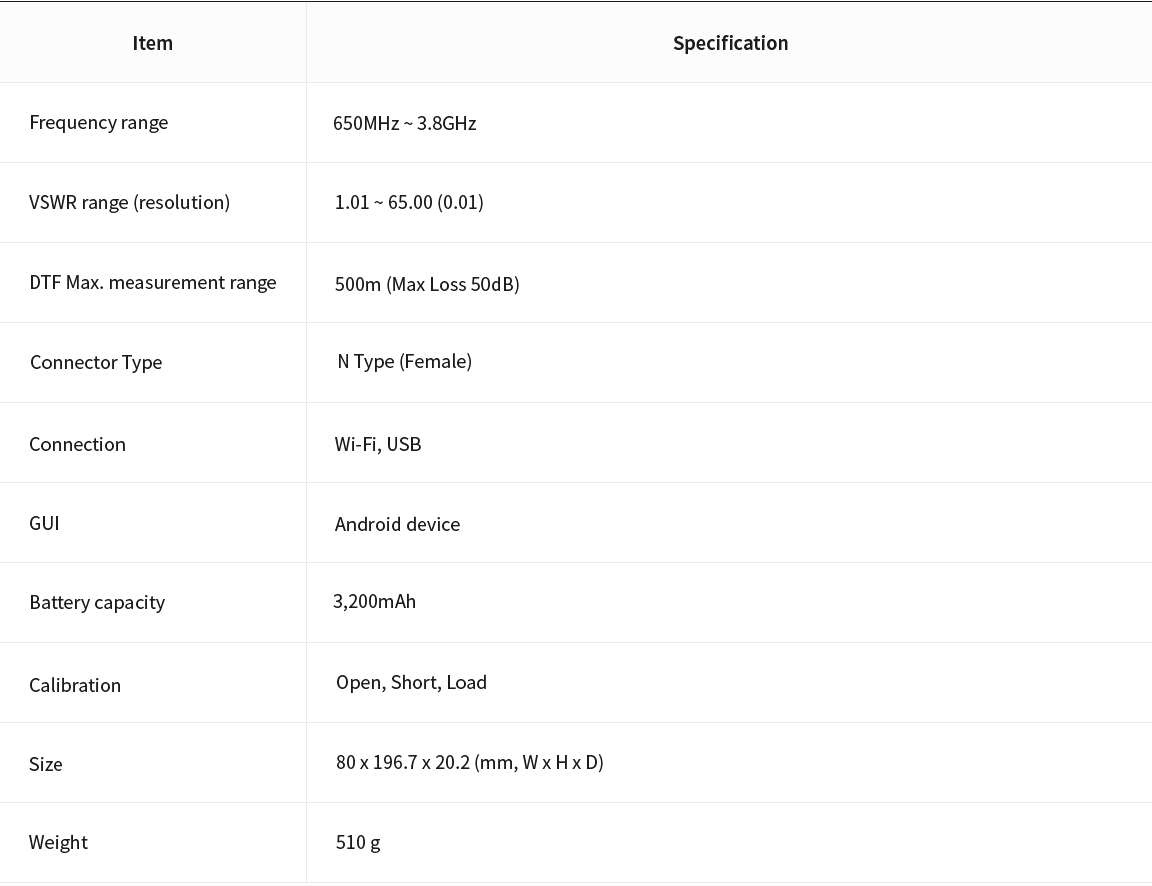

Specification
