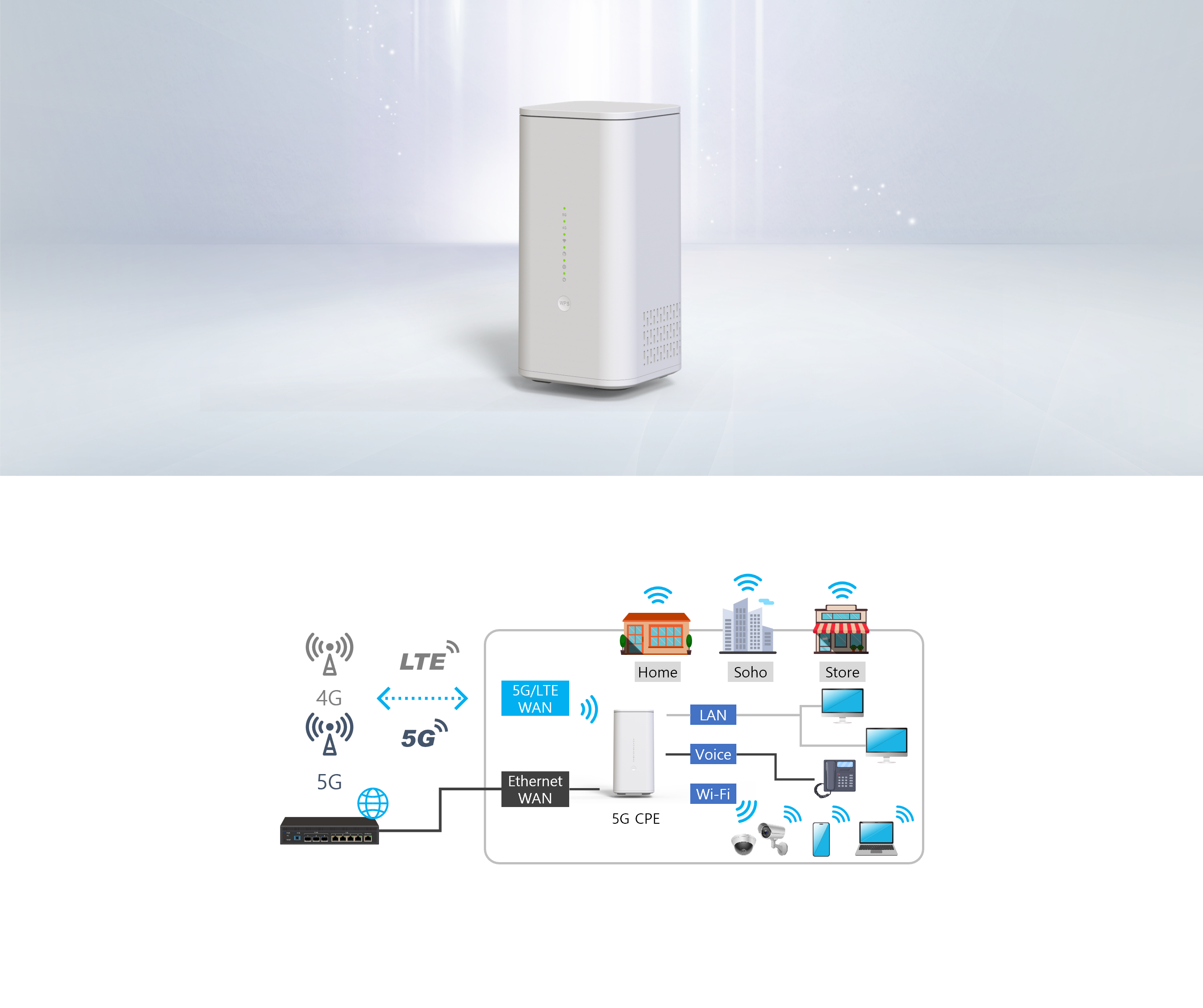

Innowireless 5G Wi-Fi Router combines 5G technology with Wi-Fi7 to deliver an ultra-fast internet environment, providing stable high-speed connections for high-resolution streaming, video conferencing, and online gaming.
.png)
ㆍLTE / 5G Support
- LTE : Band 1, 2, 3, 4, 5, 7, 12, 13, 14, 17, 30, 38, 40, 41
- 5G : Band 1, 3, 5, 7, 8, 20, 25, 28, 40, 41, 71, 77, 78
ㆍWi-Fi 7 Support
- 2.4 / 5 / 6 GHz
ㆍMulti-Device Support
- Simultaneously connects up to 192 user devices
ㆍIntegrated Data & Voice Support
- Supports RJ-45 Data port and RJ-11 Voice port
ㆍ5G Connectivity
- Supports high-speed 5G NR to provide faster downloads, lower latency, and enhanced network performance.
ㆍWi-Fi 7
- Supports the latest Wi-Fi 7 to provide high-speed and stable network performance.
Specifications |
|
|---|---|
| Wireless Communication Chipset | Qualcomm Snapdragon SDX82 |
| Telecommunication Standards | - LTE DL Cat.20 / UL Cat.18 - 5G NR (NSA / SA), 3GPP Release 18 |
| Frequency Band | - LTE : B1, 2, 3, 4, 5, 7, 12, 13, 14, 17, 30, 38, 40, 41 - 5G : n1, 3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 71, 77, 78 |
| Throughput | - LTE : DL 2.0 Gbps / UL 211 Mbps - 5G NR SA : DL 7.01 Gbps / UL 1.25 Gbps - 5G NR NSA : DL 5.47 Gbps / UL 730 Mbps |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Wi-Fi Band | 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Modulation | DBPSK/DQPSK/CCK/BPSK/QPSK/4096QAM |
| Wi-Fi Data Transmission | IEEE 802.11BE : 19000 Mbps |
| Wi-Fi Connection | Maximum 256 Concurrent Users (2.4GHz 128 + 5GHz 128 + 6GHz 256) |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Interface | - USB 3.1 Gen2 C type port x 1 - RJ45 VoLTE (Optional) - 2.5 GE WAN port x 1 - 2.5 GE LAN port x 1 |
| Size / Weight | 120 x 100 x 200 (mm) / TBD |
| Operational Voltage | DC 12V / 5A |
