Innowireless 5G Dongle provides a reliable communication environment by utilizing LTE and 5G connectivity. As a specialized communication terminal, it supports ultra-high-speed wireless data and internet services.
.png)
ㆍLTE / 5G Support
- LTE : Band 1, 5, 7
- 5G : n78
ㆍRemote Management
- FOTA (Firmware Over-The-Air) Remote Upgrade
- For public institutions, 5G Dongle Firmware can be updated independently via separate PKG delivery
ㆍSSL VPN (Optional / Additional Cost)
ㆍHigh-Speed Communication
- Delivers high-speed, ultra-low latency 5G services
ㆍHigh Portability
- Compact size for easy carrying

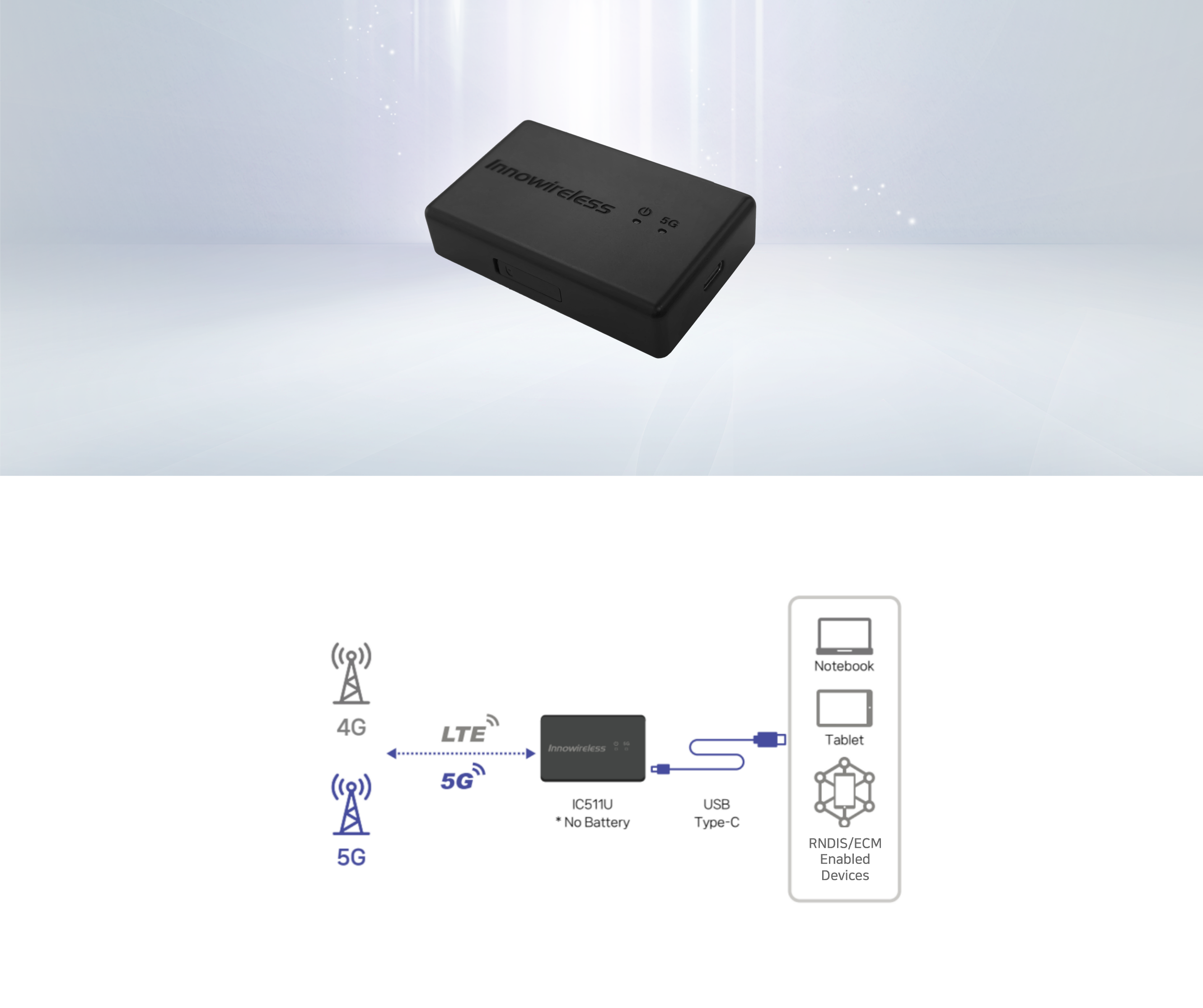

ㆍSimple Installation
- Immediate internet access by connecting a USB-C cable to a PC or laptop
ㆍNetwork Security
- LTE/5G authentication, encrypted communication networks, and USIM-based device identification
Specifications |
|
|---|---|
| Wireless Communication Chipset | Qualcomm SDX62 |
| Telecommunication Standards | - LTE DL Cat.19 / UL Cat.18 - 5G NR (NSA / SA), 3GPP Release 16 |
| Frequency Band | - LTE : B1, 3, 5, 7, 8, 20, 28, 32, 38, 40, 41 - 5G : n1, 3, 7, 8, 20, 28, 38, 40, 41, 71, 76, 78 |
| Throughput | - LTE : DL 1.6 Gbps / UL 200 Mbps - 5G NR SA : DL 2.4 Gbps / UL 900 Mbps - 5G NR NSA : DL 3.4 Gbps / UL 555 Mbps |
| Interface | - USB 3.1 Gen2 C type port x 1 - Nano USIM port x 1 - LED x 2 |
| Size / Weight | 72 x 45 x 16 (mm) / 64.6g |
| Power Input | 5V / 3A |
| Power consumption | <15Watt(Max) |
| In-Box Items | AD511, C to C Cable, User Guide |
